Snap it on. Record 4K60 ProRes to an external SSD on iPhone 15 Pro and later Pro models.
SSD not included. Fits any M.2 NVMe (2230–2280, M or B+M key) up to 8 TB. With a phone, drives over 1 TB need USB-C power.
ProRes fills a phone fast. Vault Mag snaps onto the back of your iPhone with N52 magnets and carries an M.2 NVMe SSD of up to 8 TB. On iPhone 15 Pro and later Pro models, you record 4K60 ProRes straight to that drive and leave your phone's storage alone.
It is also a 6-in-1 dock: HDMI 4K60, SD and microSD slots, USB-A and USB-C at 10Gbps, and a USB-C PD input rated up to 100W. When the shoot wraps, connect it to your laptop and move the footage over a 10Gbps link. The SSD is sold separately.
HOST USB-C: Connects to your phone or computer
USB-C PD: Power input up to 100W, up to 90W to device
HDMI: 4K60, single display
USB-A: 10Gbps
USB-C (data): 10Gbps
Card slots: SD 3.0 and microSD 3.0, up to 104 MB/s
KOVARA Vault Mag
Short USB-C to USB-C cable
Magnetic ring
Quick start guide
Orders ship within 1–3 business days, with tracking, to addresses in the United States. You can return an unused Vault Mag in its original packaging within 30 days. Return shipping is paid by the customer, unless the item is defective or we made a mistake. Checkout is secure.
Overview
Snap it on. Record 4K60 ProRes to an external SSD on iPhone 15 Pro and later Pro models.
6-in-1 dock
Storage, display, camera cards, accessories and power, all from the back of your phone. One short cable links it to your iPhone, iPad or laptop.
Magnetic mount

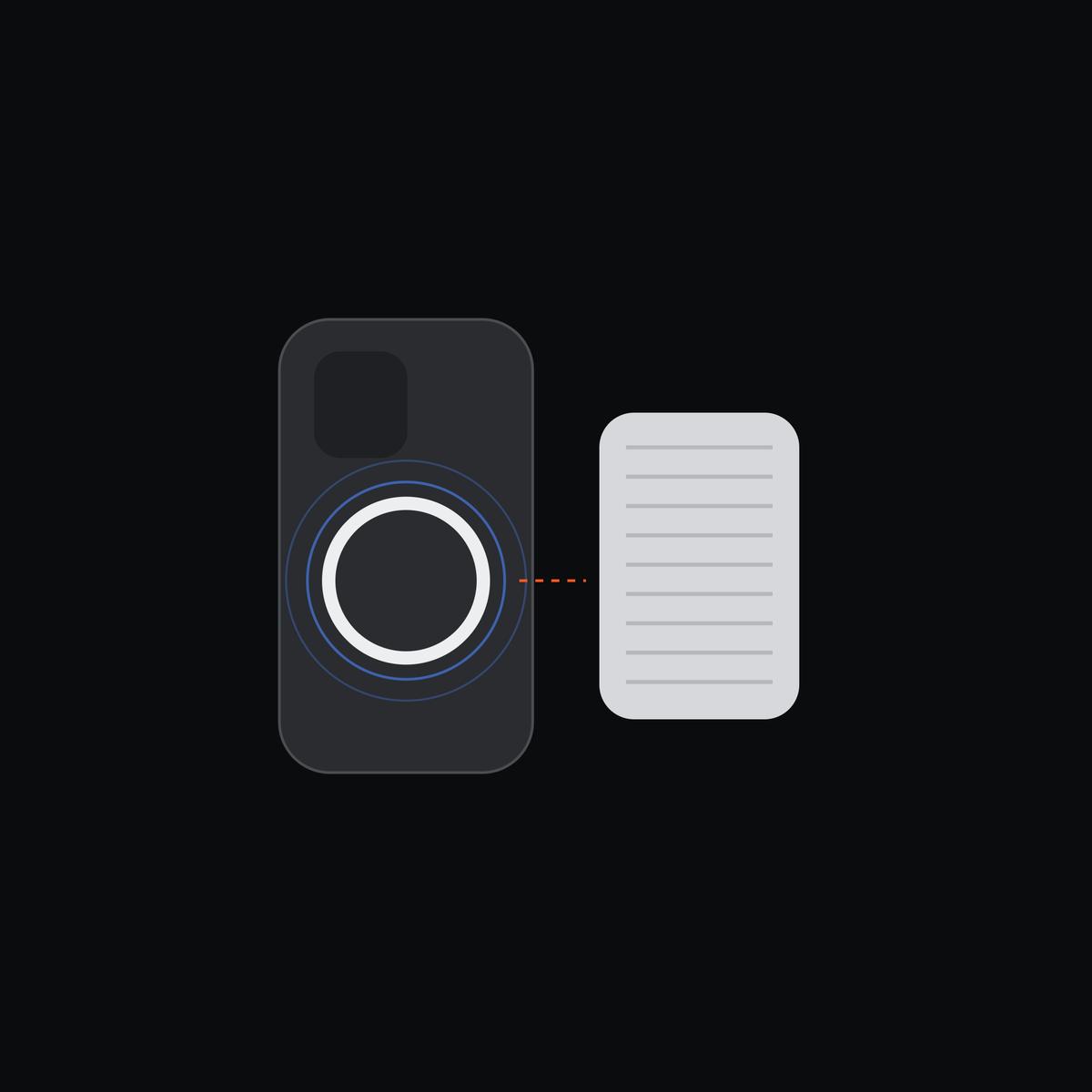

N52 magnets hold Vault Mag on MagSafe iPhones and MagSafe cases. For phones or cases without magnets, such as many Android phones, use the included ring.
ProRes recording
On iPhone 15 Pro and later Pro models, 4K60 ProRes records straight to the SSD. Long takes no longer depend on how much space your phone has left.
10Gbps transfer
The drive travels with the footage. Unplug from your iPhone, connect to your computer, and open the files over a 10Gbps USB-C link.
Card readers
SD and microSD 3.0 slots bring in footage from a camera, drone or action cam, with no separate reader in your bag.
HDMI output
Send your screen to a monitor, TV or field display at up to 4K60. Video out needs a phone with a full-function USB-C port.
Power delivery
Plug a USB-C charger into the PD port to run the dock and charge your device at the same time. It accepts up to 100W and passes up to 90W through.
Installation

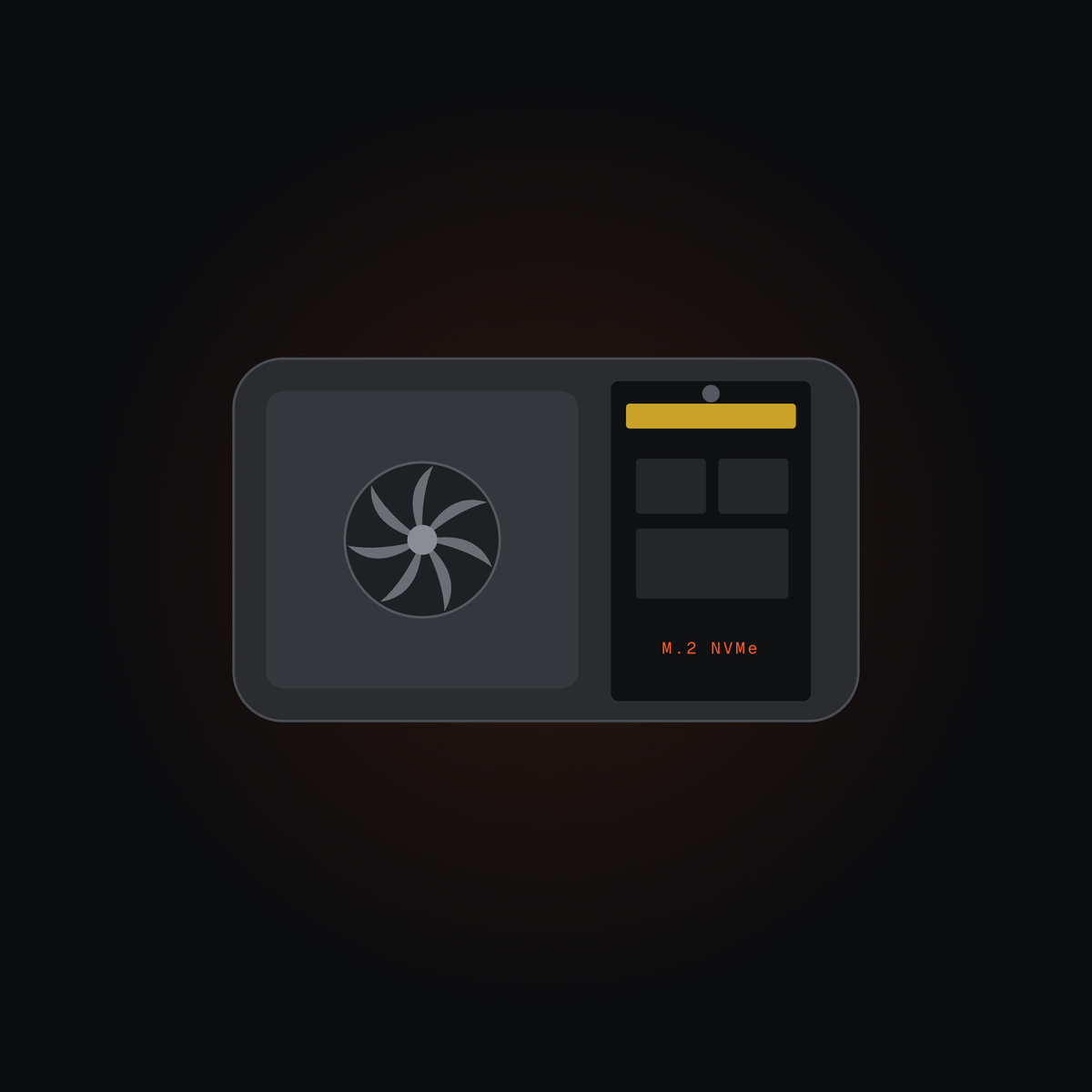

Lift the lid by hand, slide the SSD in and lock it with the tool-free clip. Close the lid and you are ready to record.
Storage
Fits M.2 NVMe (PCIe) SSDs in 2230, 2242, 2260 and 2280 lengths, M key or B+M key. The SSD is sold separately, so you choose the capacity.
MagneticBring them close.
N52 magnetsSnap. Locked in.
6-in-1Then it does everything else.
Every port, explained
Hover or tap a port. SD, microSD and the second USB-C sit on the opposite edge.
Connect to your iPhone, iPad or computer with the short cable included.
Plug in your charger to power the dock and charge your device at the same time. Required for SSDs of 2 TB+ on a phone.
Send your screen to a monitor, TV or field display.
Mics, keyboards, drives — the accessories you already own.
Offload camera cards straight to your phone or SSD.
Drone and action-cam footage without a separate reader.
A second fast data port for another drive or accessory.
Compatibility
Select your device. We tell you exactly what you get — no surprises after delivery.
Full experience
iPhone 17 Pro / Pro Max
Full experience
iPhone 16 Pro / Pro Max
Full experience
iPhone 15 Pro / Pro Max
Works — with limits
iPhone 15 / 16 / 17 / Air (standard models)
Ports, card readers and file access work. Transfers are capped by the phone's USB 2 port.
Works — with limits
iPhone 16e
No MagSafe on this model: stick on the included magnetic ring.
Works — with limits
iPad with USB-C
Full experience
Mac or Windows laptop
Use it as a portable SSD and mini dock.
Works — with limits
Android phone (USB-C)
Not compatible
iPhone 14 or earlier (Lightning)
Lightning iPhones can't connect to USB-C storage docks.
In use
Choose a chapter to jump straight to it.
In the box
Tech specs
Questions
No. Vault Mag ships without a drive, so you choose the capacity. Pick an M.2 NVMe (PCIe) SSD in 2230, 2242, 2260 or 2280 length, M key or B+M key, up to 8 TB. It is built for NVMe, so M.2 SATA drives are not on the supported list.
Only for large drives on a phone. Up to 1 TB, the phone powers the SSD by itself. At 2 TB and above (these drives draw more than 3.3V 1.8A), connect a USB-C charger to the PD port. Plugged into a computer, Vault Mag gets all the power it needs from the computer, whatever the drive size.
Vault Mag is designed mainly for iPhone 15, 16 and 17 series, and also works with iPad, laptops and Android phones over USB-C. Check that your phone has a full-function USB-C port: HDMI video out and some other functions depend on it. Larger phones (Pro, Pro Max, Plus sizes) give the best fit.
iPhone 15 Pro and later Pro models record 4K60 ProRes directly to the SSD. Standard iPhone 15, 16 and 17 models, iPhone 16e and iPhone Air have a USB 2 port, so the phone limits transfer speed and external ProRes recording is not available.
Fit the SSD, snap Vault Mag onto your iPhone 15 Pro or later Pro model and connect the short cable. For drives of 2 TB or more, plug USB-C power into the PD port first. Turn on Apple ProRes in Settings > Camera > Formats, then select ProRes in the Camera app.
Yes. It is firm when new and loosens with use. Work it with your fingers a handful of times and it will seat more easily, which helps most on iPhone 15 models. Avoid forcing it into a sharp angle.
N52 magnets snap Vault Mag onto MagSafe iPhones and MagSafe cases. If your phone or case has no magnets, including iPhone 16e and Android phones without magnets, attach the included magnetic ring first.
Yes. The built-in fan has an on/off switch. Turn it on for long recordings and large transfers, and off when you want quiet.

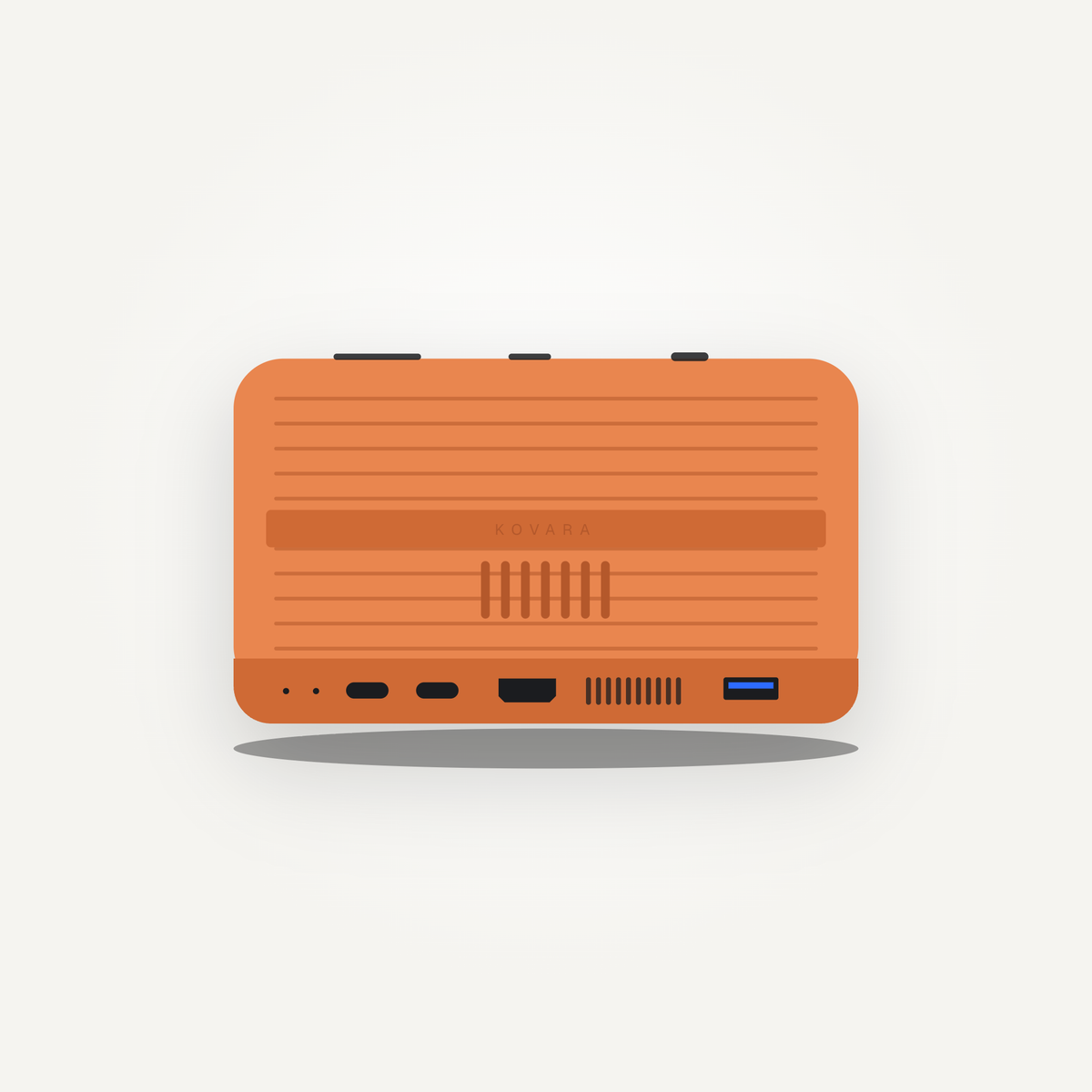

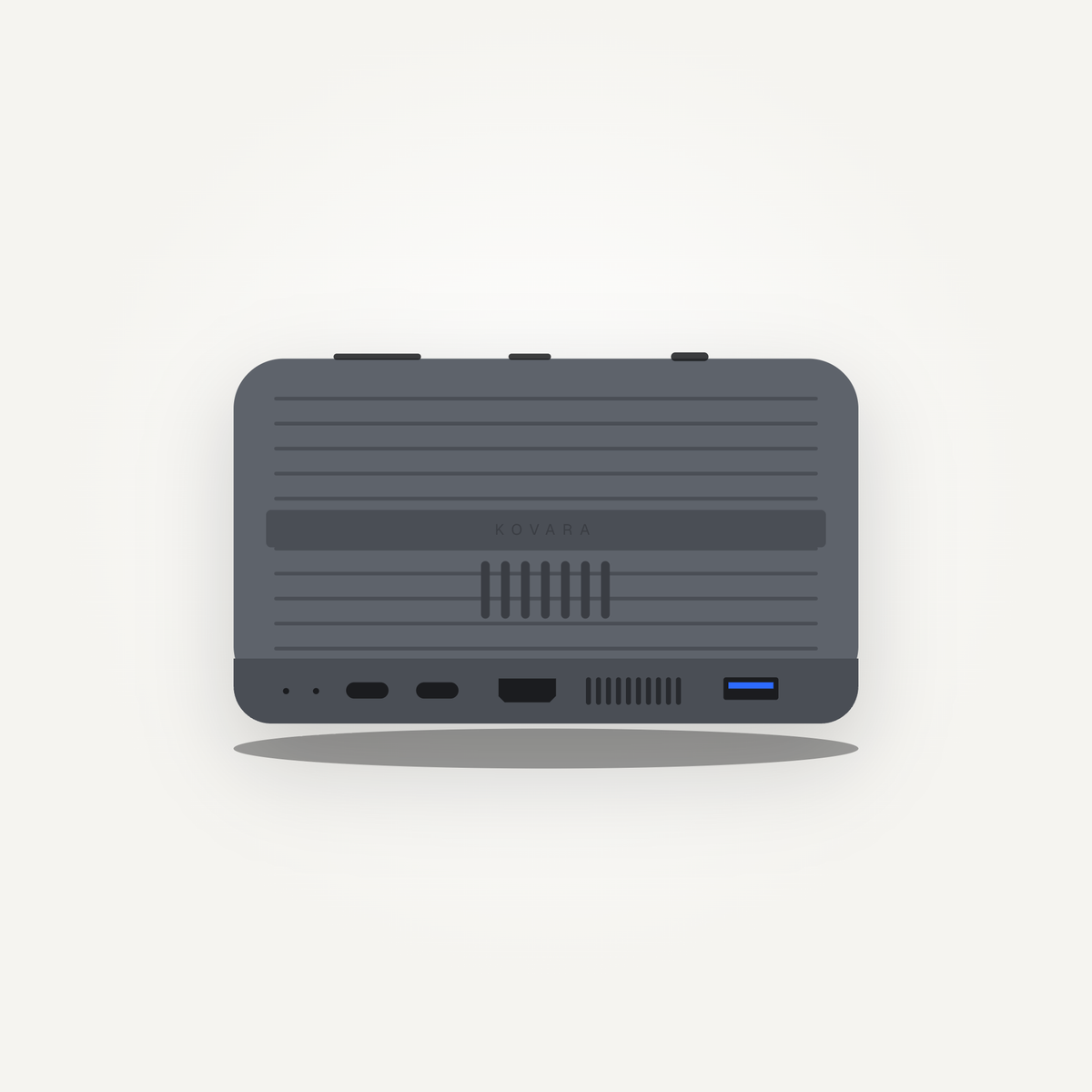

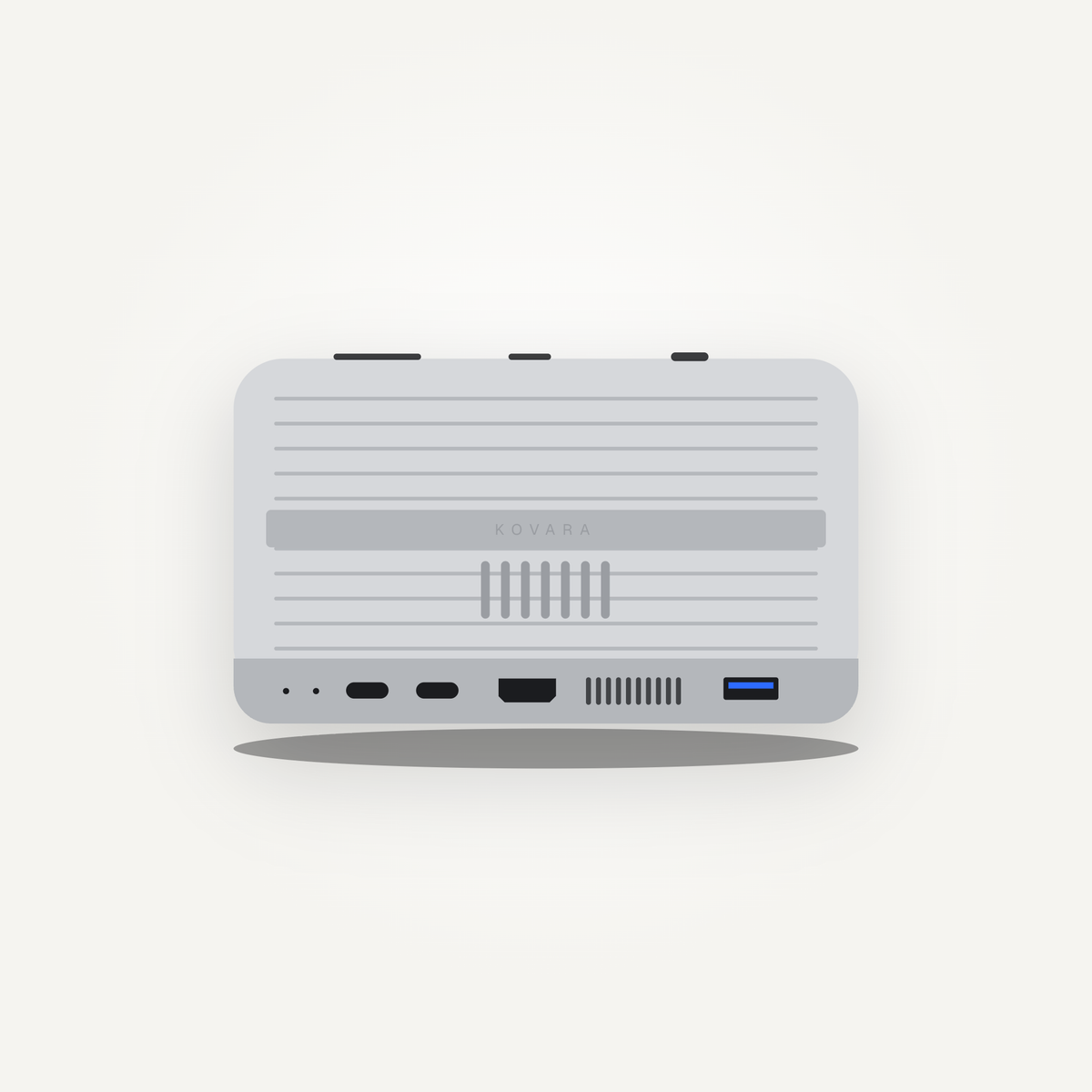

Silver, Gray and Orange. All three are $69.99 and share the same ports and specs.
