Machined, ribbed aluminium
The ribs aren't decoration: they add grip and help the shell shed heat.
In use
See it in action.
Tap a chapter to jump straight to it.
KOVARA Vault Mag
Your iPhone. Unlimited.
A magnetic dock and 10Gbps SSD enclosure that snaps onto your iPhone. Record 4K60 ProRes straight to external storage, and plug in everything else.
10GbpsSSD & ports
8 TBMax SSD
100WPD input
MagneticBring them close.
N52 magnetsSnap. Locked in.
6-in-1Then it does everything else.
N52High-strength magnets
10GbpsSSD & data ports
4K60HDMI output
8 TBM.2 NVMe, max
104 MB/sSD & microSD
100WPD pass-through
Inside the Vault
Open it up.
10GbpsUSB-C data link
2230–2280Any M.2 NVMe, up to 8 TB
Active fanWith on/off switch
N52High-strength magnets
Every port, explained
Six ports. One magnet.
Hover or tap a port. SD, microSD and the second USB-C sit on the opposite edge.
-
01
HOST · USB-CTo your phone or laptop
Connect to your iPhone, iPad or computer with the short cable included.
-
02
USB-C PD100W in · up to 90W out
Plug in your charger to power the dock and charge your device at the same time. Required for SSDs of 2 TB+ on a phone.
-
03
HDMI4K · 60Hz
Send your screen to a monitor, TV or field display.
-
04
USB-A10Gbps
Mics, keyboards, drives — the accessories you already own.
-
05
SD cardSD 3.0 · up to 104 MB/s
Offload camera cards straight to your phone or SSD.
-
06
microSDTF 3.0 · up to 104 MB/s
Drone and action-cam footage without a separate reader.
-
07
USB-C10Gbps
A second fast data port for another drive or accessory.
10Gbps, visualised
50 GB of footage. Off your phone.
KOVARA Vault Mag · 10Gbps≈ 1 min
Standard USB 2.0 cable≈ 25 min
Cloud upload · 100 Mbps≈ 70 min
Indicative times for a 50 GB transfer at typical real-world throughput.
Storage calculator
How long can you shoot?
Pick your SSD and recording format. Footage goes straight to the drive — not your iPhone.
Recording time
—
Estimates based on typical Apple bitrates. Actual results vary by scene and settings.
Design
Small. Serious. Ready.
An aluminium shell, a real fan and a real SSD inside. Built to be used every day.
8 TB
Max SSD capacity
M.2 2230 to 2280.
N52
Magnets
Snaps on. Stays on.
A fan you can switch off
Cool during long ProRes takes, silent when you need it.
104
MB/s card readers
SD and microSD 3.0.
90W
To your device
From a 100W charger.
Setup
Tool-free in 30 seconds.
No screwdriver, no drivers.
Flip the lid
The cover lifts off by hand — no screws.

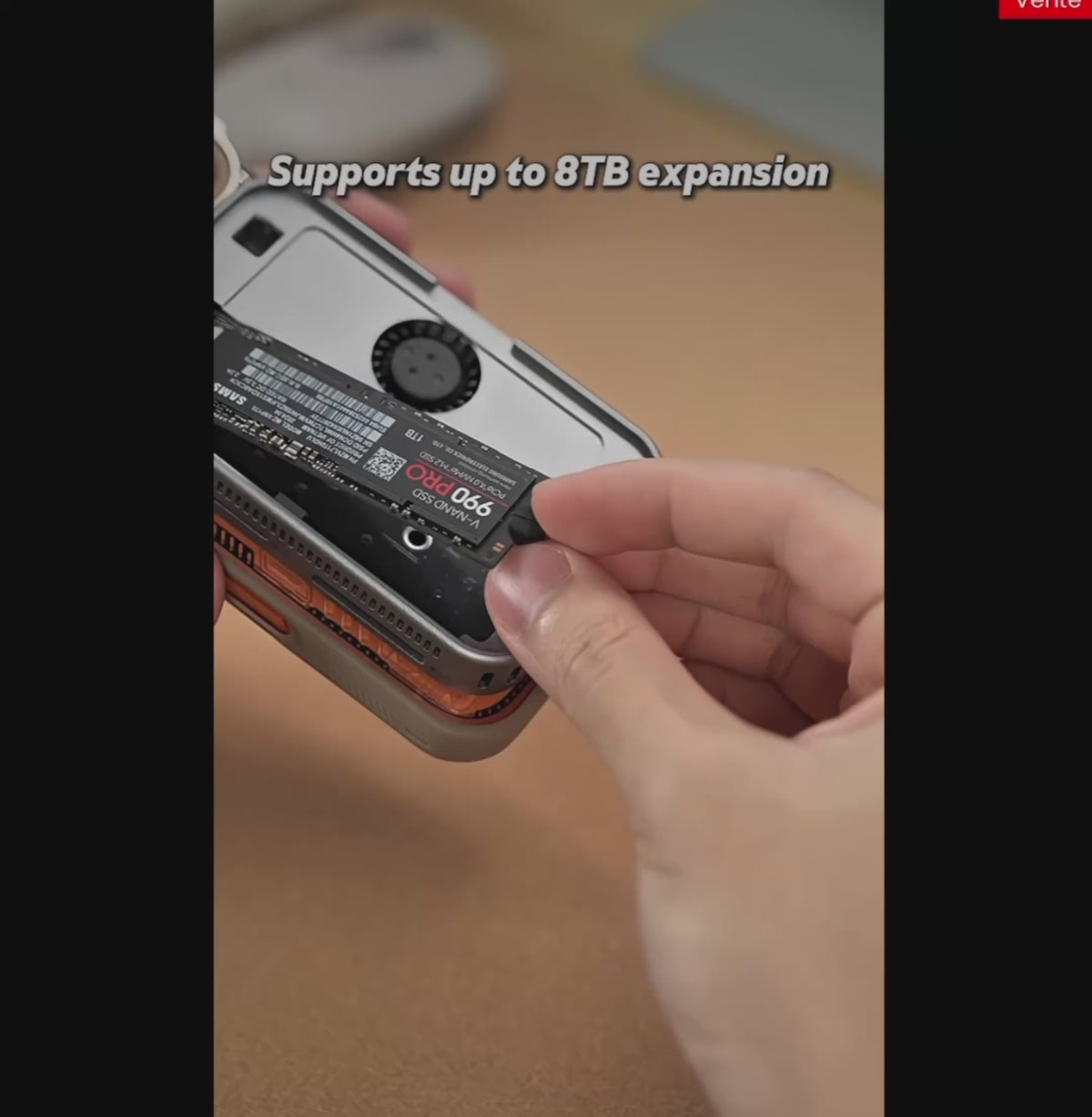

Slide in your SSD
Any M.2 NVMe from 2230 to 2280, M or B+M key, up to 8 TB. Lock it with the tool-free clip.
Close & snap on
N52 magnets lock onto MagSafe iPhones. No MagSafe? Use the included magnetic ring.
Plug in & shoot
Connect the short USB-C cable and start recording to the SSD.
Why Vault Mag
Built for people who shoot.
Designed for creators who outgrew their iPhone's storage.
01
Never run out of space
Record long ProRes takes directly to the SSD, so your iPhone's storage stays free.
02
Snap, shoot, offload
Magnetic mount on the back of the phone. When you're done, plug into your laptop and move everything at 10Gbps.
03
A dock in your pocket
HDMI, card readers, USB and 100W charging. Your phone becomes a workstation.
Compatibility
Will it work with my device?
Select your device. We tell you exactly what you get — no surprises after delivery.
Full experience
iPhone 17 Pro / Pro Max
- Transfer speedUp to 10Gbps
- Record to SSDYes — 4K60 ProRes
- Magnetic mountYes
Full experience
iPhone 16 Pro / Pro Max
- Transfer speedUp to 10Gbps
- Record to SSDYes — 4K60 ProRes
- Magnetic mountYes
Full experience
iPhone 15 Pro / Pro Max
- Transfer speedUp to 10Gbps
- Record to SSDYes — 4K60 ProRes
- Magnetic mountYes
Works — with limits
iPhone 15 / 16 / 17 / Air (standard models)
- Transfer speedUSB 2 speed (limited by the iPhone)
- Record to SSDNo — ProRes recording needs a Pro model
- Magnetic mountYes
Ports, card readers and file access work. Transfers are capped by the phone's USB 2 port.
Works — with limits
iPhone 16e
- Transfer speedUSB 2 speed (limited by the iPhone)
- Record to SSDNo
- Magnetic mountYes — with the included magnetic ring
No MagSafe on this model: stick on the included magnetic ring.
Works — with limits
iPad with USB-C
- Transfer speedDepends on model (up to 10Gbps)
- Record to SSDStorage & ports only
- Magnetic mountNo
Full experience
Mac or Windows laptop
- Transfer speedUp to 10Gbps
- Record to SSD—
- Magnetic mount—
Use it as a portable SSD and mini dock.
Works — with limits
Android phone (USB-C)
- Transfer speedDepends on phone
- Record to SSD—
- Magnetic mountYes — with the included magnetic ring
Not compatible
iPhone 14 or earlier (Lightning)
- Transfer speed—
- Record to SSD—
- Magnetic mount—
Lightning iPhones can't connect to USB-C storage docks.
Select a product in the theme editor.
Ships in 24hTracked, worldwide
2-year warrantyCovered by KOVARA
30-day returnsFree, no questions
Real supportReply within 24h
Support
Questions, answered.
Which SSD should I buy?
Any M.2 NVMe SSD works. For iPhone ProRes recording, pick a fast drive of 1 TB or 2 TB. Remember that 2 TB+ drives need USB-C power when used with a phone.
Does my SSD need extra power?
With a phone: drives of 1 TB or less run without external power. Larger drives need a USB-C power supply connected to the PD port. With a computer, no extra power is needed.
How do I record ProRes to the SSD?
On iPhone 15 Pro and later Pro models, connect the Vault Mag, open Camera and select ProRes. The iPhone records directly to the external drive.
Will the magnet hold while I film?
N52 high-strength magnets lock onto MagSafe iPhones and MagSafe cases. For phones or cases without MagSafe, stick on the included magnetic ring.
Which colours are available?
Silver, Gray and Orange.
Is the fan noisy? Can I turn it off?
The built-in fan keeps the SSD cool during long recordings, and a switch lets you turn it off when you need silence.
